pixel pitch
| p3.91 | p4.81 | p6.25 | p7.81 | p10.42 |
| led lamps | smd1921 | smd1921 | smd2727 | smd2727 | smd3535 |
| module size | (wxh) 500x250mm |
| module resolution | 128x64 | 104x52 | 80x40 | 64x32 | 48x24 |

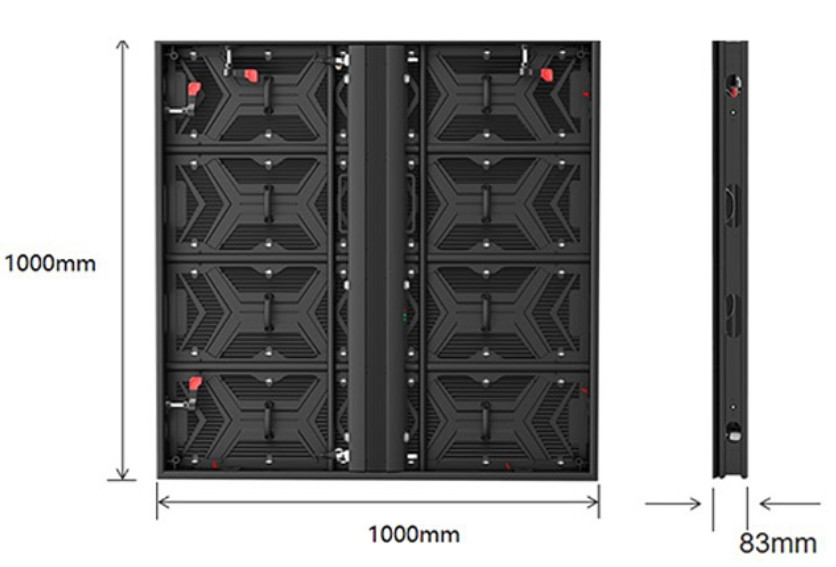

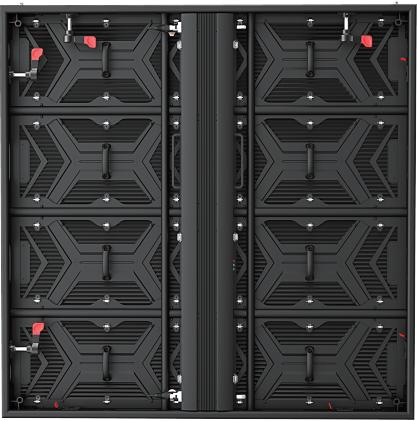

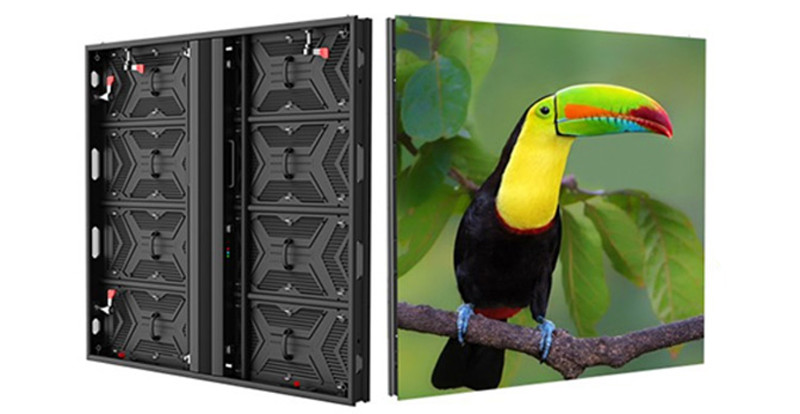

| cabinet size | (wxhxd) 1000x1000x82mm (1000x750x82mm, 1000x500x82mm are optional) |
| pixel density | 65536 dots/sqm | 43264 dots/sqm | 25600 dots/sqm | 16384 dots/sqm | 9216 dots/sqm |

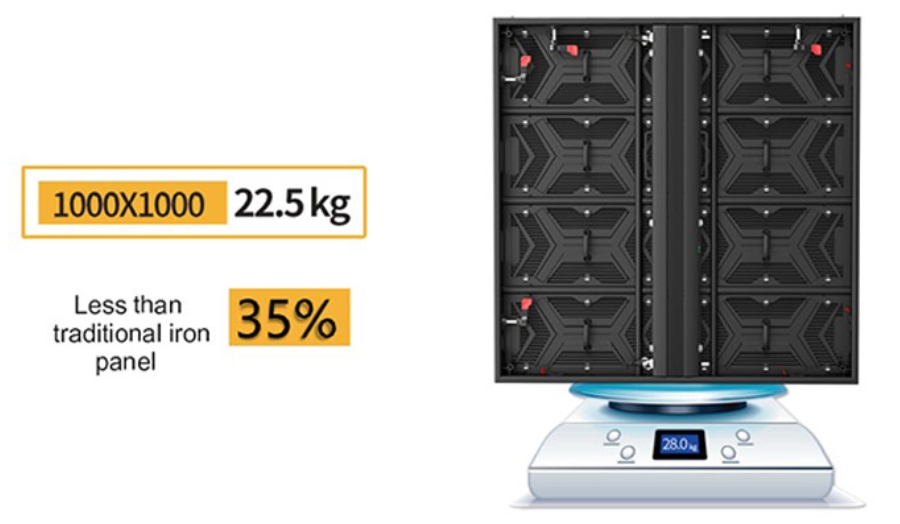

| display GW | 22.5 KG/sqm |
| maintenance mode | both front and rear service |

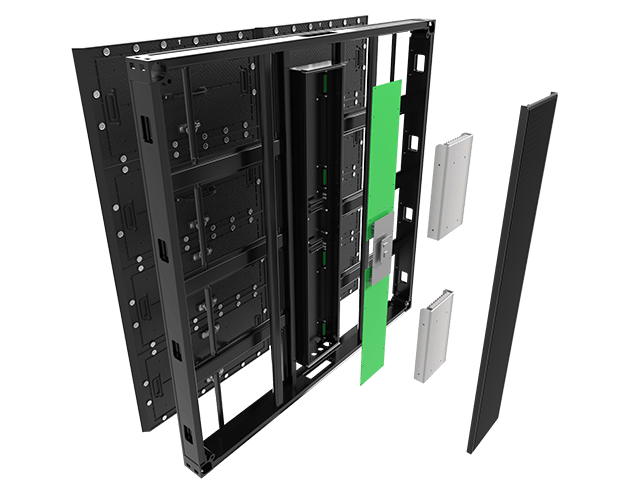

| cabinet materials | waterproof aluminum profile |
| brightness | > 6000 cd/sq |
| color temperature | 1000-18500 K, adjustable |
| view angle (H/V) | 160/160 degrees |
| best view distance | 4-100m | 4-100m | 6-150m | 8-150m | 10-200m |
| best view distance | 10000:1 |
| frame frequency | 50/60 Hz |
| drive mode | 1/16 scan | 1/12 scan | 1/8 scan | 1/4 scan | 1/2 scan |

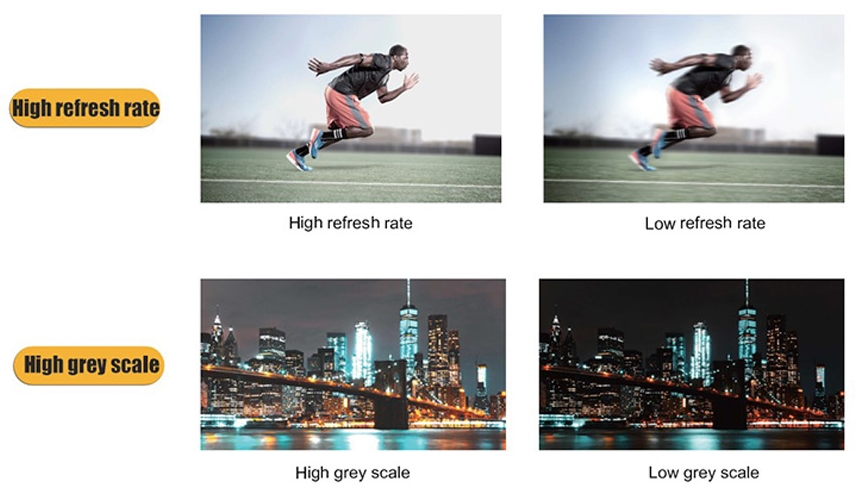

| gray level | 16 bit |
| refresh rate | 3840Hz |

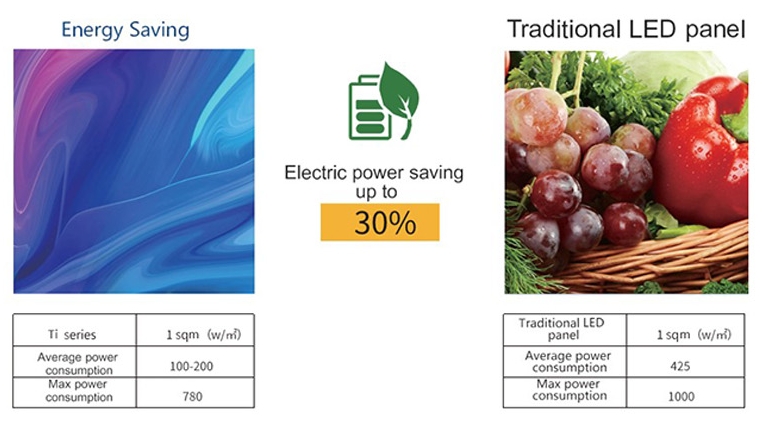

| max power consumption | 600 W/sqm |
| average power consumption | 100-200 W/sqm |

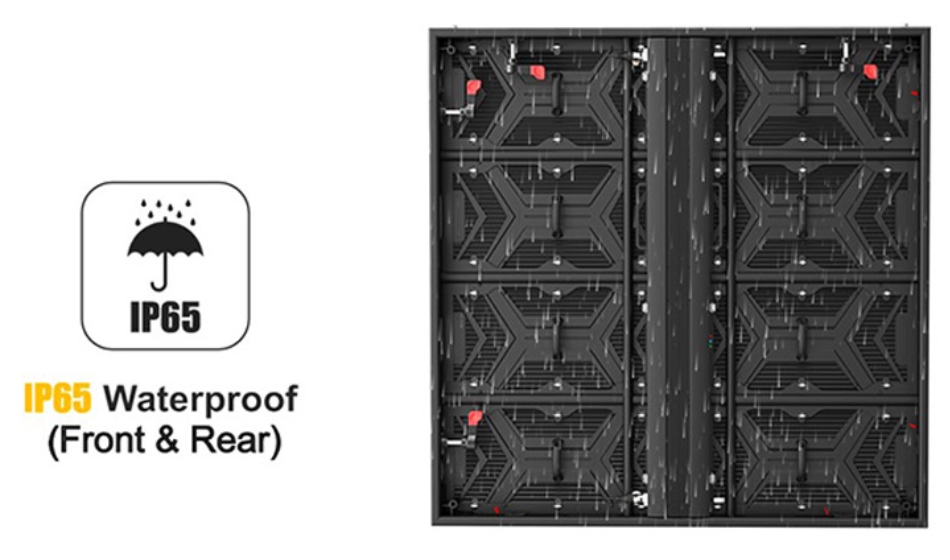

| protection level | IP65 |
| working environment | -10℃～50℃, 15%～85%RH |
| certification | CE,FCC,RoHs,CCC |
